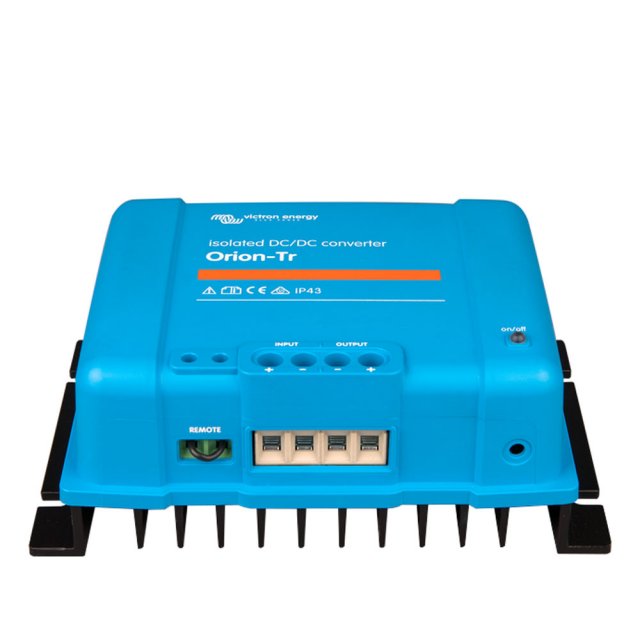

Victron Orion-Tr DC-DC Converter-Isolated 12/12-18A (220W)
Item: ORI121222110
MPN: ORI121222110
Input voltage range: 8-17 V. Under voltage shut down / restart: 7V / 7.5 V. Nominal output voltage: 12,2 V. Output voltage adjust range: 10-15 V. Output voltage tolerance: +/- 0,2 V. Output noise: 2 mV rms. Cont. output current at nominal output voltage and 40°C: 18 A. Maximum output current (10 s) at nominal output voltage: 25 A. Short circuit output current: 40 A. Cont. output power at 25°C / 40°C: 280 W / 220 W.
login to saveProduct Description
Orion-Tr DC-DC converters isolated: 100 Watt series. Remote on-off - The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger - For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system. All models are short circuit proof and can be paralleled to increase output current - An unlimited number of units can be connected in parallel. IP43 protection - When installed with the screw terminals oriented downwards. Screw terminals - No special tools needed for installation. Input fuse - On 12V and 24V input models only. Galvanic isolation: 200 V dc between input, output and case. Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C). Humidity: Max. 95% non condensing. DC connection: Screw terminals. Maximum cable cross-section: 13 mm² AWG6. Dimensions (HxWxD) / Weight: 130 x 186 x 70 mm / 1.3 kg. Standards:. Safety: EN 60950. Emission: EN 61000-6-3, EN 55014-1. Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2. Automotive Directive: EN 50498.Collect in Store
This item is available for collection.
