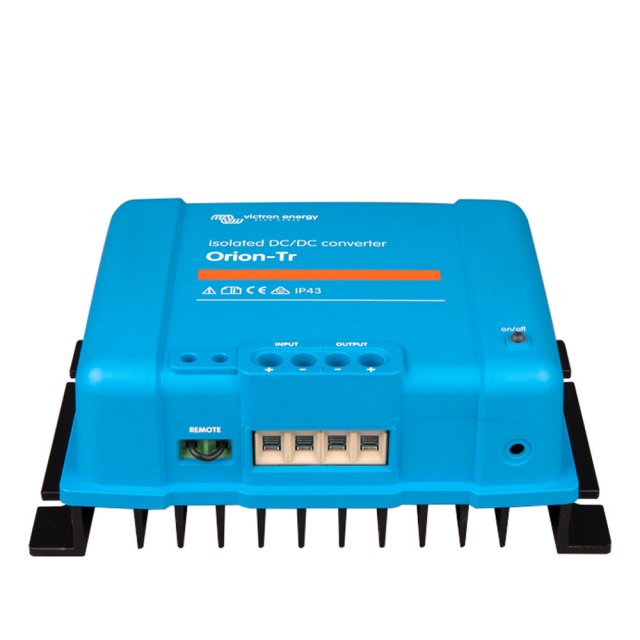

Victron Orion-Tr DC-DC Converter 24/12-30A (360W) Isolated

Product Description

Input Voltage Range: 20-35V Under Voltage Shutdown: 14V Under Voltage Restart: 15V Nominal Output Voltage: 12.2V Output Voltage Adjust Range: 10-15V Short Circuit Output Current: 60A Cont. Output Power at 25°C: 430W DC Connection: Screw Terminals Protection Category: IP43 Dimensions: H130 x W186 x D80 mm Weight (kg): 1.8 Warranty: 5 Years Remote on-offThe remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel. IP43 protectionWhen installed with the screw terminals oriented downwards. Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only
