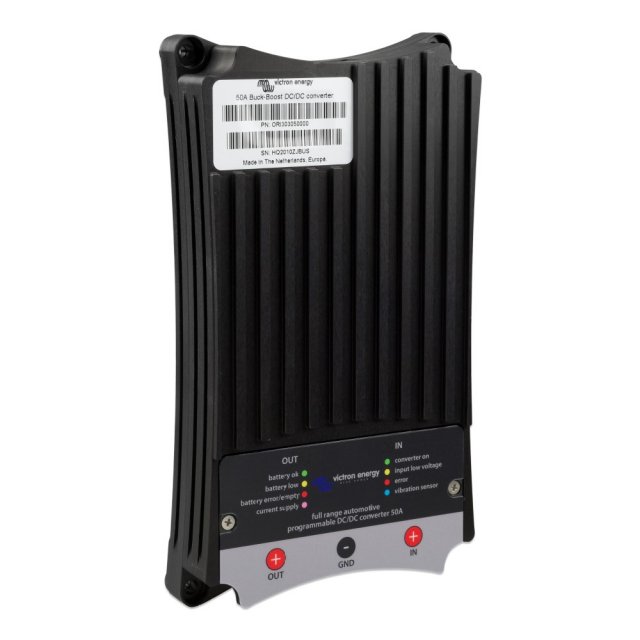

Victron Energy ORI303050000 50A Buck-Boost DC/DC Converter

Product Description

Input Voltage Range: 10-30V Under Voltage Threshold: 10V Output Voltage Range: 10-30V Maximum Charge Current: 12V: 50A, 24V: 25A Min Power Consumption (Power save mode): 7mA Weight: 1.4Kg Dimensions: 213 x 120 x 30mm <a class="pagebuilder-button-primary" href="https://www.dropbox.com/s/8w42xvwxupe4toy/Datasheet-Buck-Boost-DC-DC-converter-25A-50A-100A-EN.pdf?dl=0" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fas fa-file-alt"></i> <span data-element="link_text" style="font-weight: 600;"> Datasheet</span> </a> The 50A Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly. DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines) The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages. ‘Engine running’ detection system Deep discharge of the vehicle’s starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection). Fully programmable The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed) One product for 12V, 24V and 12/24V systems The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery. Charge current and input current limiter The output current is determined by the following factors: The maximum charge current setting. The maximum input current setting. The maximum operating temperature limit of the converter
