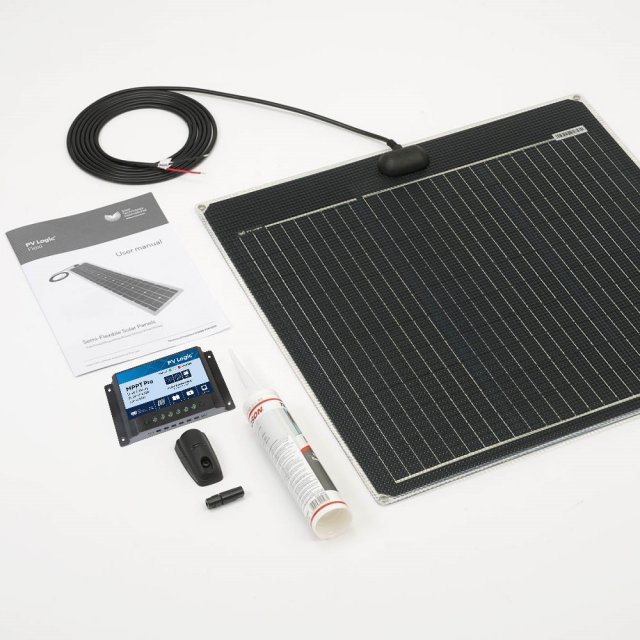

Solar Technology 55W ETFE Flexi Solar Panel Glue & 15A MPPT

Product Description

, } Power: 55W Size: 600 x 600 x 4mm Weight: 2.6Kg Amp hours per day: 19.32A Charge controller: Includes 15A Dual Batttery MPPT Charge Controller Vmp: 17.1V Voc: 20V Isc: 3.78A Includes panel bonding agent The ETFE layers give the 55w flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the top of the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours. The flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck. Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress. There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box. Includes 10A Inline Charge Controller The deck top kit is supplied with a 4m cable (attached to the panel), 10Ah in-line charge controller, battery connector cable with crocodile clips, battery connector cable with ring terminals and Wago terminal connectors. Easy fix The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03. Installation method Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.Includes 15A Dual Battery MPPT Charge Controller The PV Logic MPPT Pro charge controller has been designed to deliver the highest possible power from any 12v or 24v solar panel into a 12v or 24v battery. The MPPT Pro provides protection for a battery against overcharging for any solar panel or solar array up to 225w and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro will more than pay back its cost through the extra power it delivers. Reverse current protection. Unique dual battery charging function. Efficient MPPT charging, increases battery lifetime and improves solar system performance upto 20%. 12/24V automatic recognition. Overload protection Open circuit protection Lightning surge protection Deep discharge protection Charge current protection up to 15A Bluetooth with Apple and Android apps available Optional Display unit available
