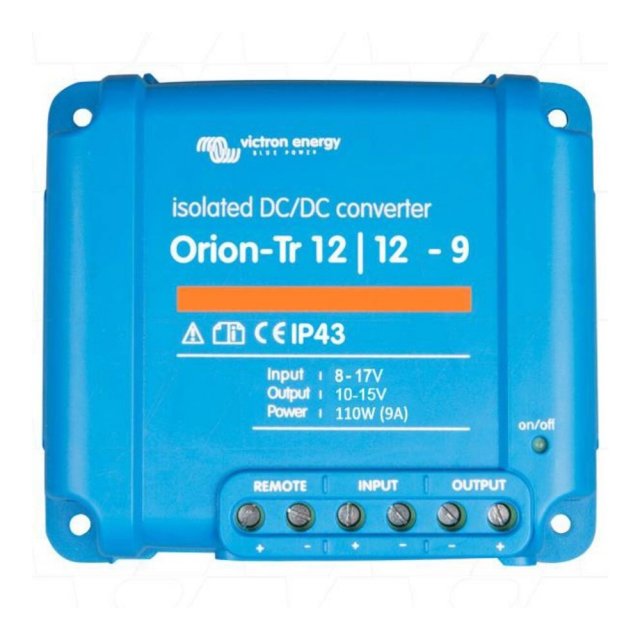

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)

Product Description

Input Voltage Range: 8-17V Under Voltage Shutdown: 7V Under Voltage Restart: 7.5V Nominal Output Voltage: 12.2V Output Voltage Adjust Range: 10-15V Short Circuit Output Current: 32A Cont. Output Power at 25°C: 110W DC Connection: Screw Terminals Protection Category: IP43 Dimensions: 100 x 113 x 47mm Weight: 0.42Kg Warranty: 5 Years Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current: An unlimited number of units can be connected in parallel.  IP43 protection: When installed with the screw terminals oriented downwards.  Screw terminals: No special tools needed for installation
