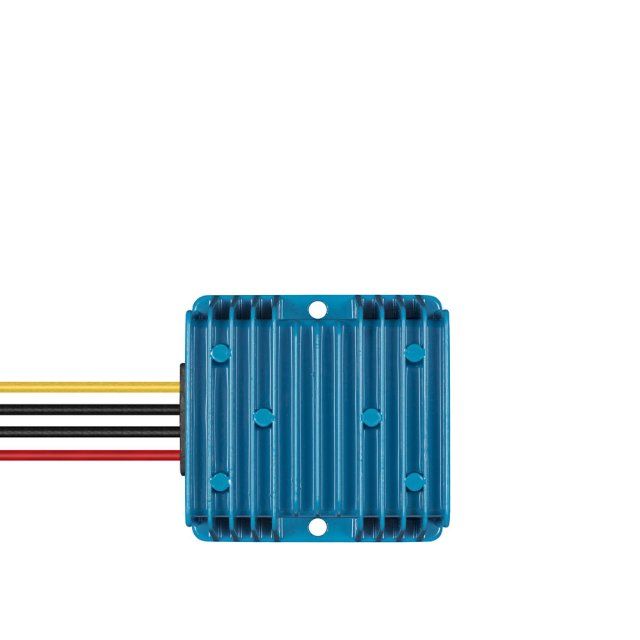

Victron Orion IP67 DC/DC Converter Not isolated 24/12-20A (240W)
Item: ORI241220260
MPN: ORI241220260
Need help with choosing which Orion-TR DC-DC Converter is best for you? Click here to download an information sheet on available models.
login to saveProduct Description
Input Voltage Range: 15-40VDC Under Voltage Shutdown: 13V Under Voltage Restart: 14V Max. Continuous Output Current: 20A Short Circuit Proof: Yes Protection Category: IP67 Dimensions: H74 x W74 x D32mm Weight (kg): 0.3 Warranty: 5 Years Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin. Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed. Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery. Protected against overheating It can be used in a hot environment such as a machine roomCollect in Store
This item is available for collection.
