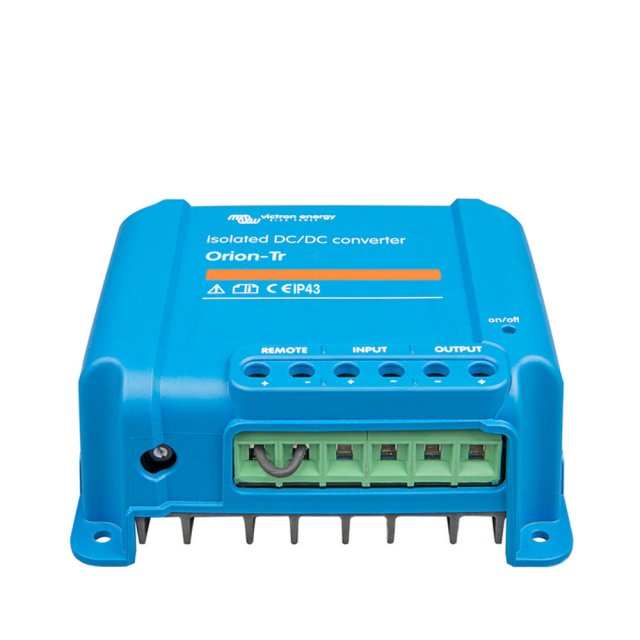

Victron Orion 12/12-9A 110w DC-DC
Item: ORI121210110
MPN: ORI121210110
Input voltage range: 8-17 V. Under voltage shut down / restart: 7 V / 7,5 V. Nominal output voltage: 12,2 V. Output voltage adjust range: 10-15 V. Output voltage tolerance: +/- 0,2 V. Output noise: 2 mV rms. Cont. output current at nominal output voltage and 25°C: 9 A. Maximum output current (10 s) at nominal output voltage: 12,5 A. Short circuit output current: 32 A. Cont. output power at 25°C / 40°C: 110 W / 85 W.
login to saveProduct Description
Orion-Tr DC-DC converters isolated: 100 Watt series. Remote on-off - The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger - For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system. All models are short circuit proof and can be paralleled to increase output current - An unlimited number of units can be connected in parallel. IP43 protection - When installed with the screw terminals oriented downwards. Screw terminals - No special tools needed for installation. Input fuse - On 12V and 24V input models only. Galvanic isolation: 200 V dc between input, output and case. Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C). Humidity: Max. 95% non condensing. DC connection: Screw terminals. Maximum cable cross-section: 6 mm² AWG10. Dimensions (HxWxD) / Weight: 100 x 113 x 47 mm / 0.42 kg. Standards:. Safety: EN 60950. Emission: EN 61000-6-3, EN 55014-1. Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2. Automotive Directive: EN 50498.Collect in Store
