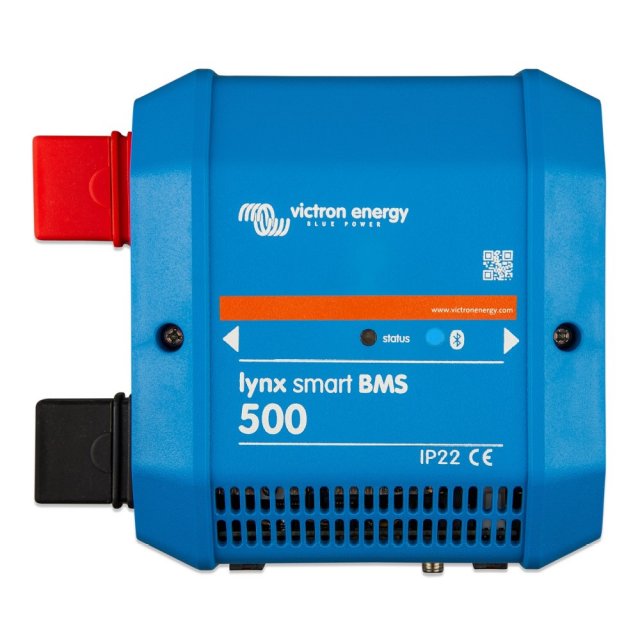

Victron Energy LYN034160200 Lynx Smart BMS 500

Product Description

Supply Voltage Range: 9-58Vdc Main Safety Contactor Continuous Current Rating: 500A continuous Reverse Polarity Protection: No Supported System Voltages: 12, 24 or 48V Main Safety Contactor Peak Current Rating: 600A for 5 minutes Battery BMS Cables Connection: Male and female circular 3-pole connector with M8 screw ring VE.Can Connection: RJ45 and RJ45 terminator Busbar Connection: M8 AUX Output Maximum Current Rating: 1.1A continuous, protected by resettabel fuse Power Consumption in Active Mode: Approximately 2.6W (200mA at 13V) depending on the state of the relays Power Consumption Hibernate or Standby Mode: Approximately 10.4mW (0.8mA at 13V) <a class="pagebuilder-button-primary" href="https://www.dropbox.com/s/4etkrun749n04cr/Datasheet-Lynx-Smart-BMS-EN.pdf?dl=0" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fas fa-file-alt"></i> <span data-element="link_text" style="font-weight: 600;"> Datasheet</span> </a> <a class="pagebuilder-button-primary" href="https://apps.apple.com/us/app/victron-connect/id943840744" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fab fa-app-store"></i> <span data-element="link_text" style="font-weight: 600;"> iOS App</span> </a> <a class="pagebuilder-button-primary" href="https://play.google.com/store/apps/details?id=com.victronenergy.victronconnect" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fab fa-google-play"></i> <span data-element="link_text" style="font-weight: 600;"> Android App</span> </a> <a class="pagebuilder-button-primary" href="https://updates.victronenergy.com/feeds/VictronConnect/windows/w7/VictronConnectInstaller.exe" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fab fa-windows"></i> <span data-element="link_text" style="font-weight: 600;"> Windows App</span> </a> <a class="pagebuilder-button-primary" href="https://apps.apple.com/us/app/victronconnect/id1084677271?ls=1&mt=12" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fab fa-apple"></i> <span data-element="link_text" style="font-weight: 600;"> Apple Mac App</span> </a>The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are: Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch Battery monitor, indicating state of charge percentage and more data. Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell. Bluetooth for use with the VictronConnect App, for setup and monitoring. Local and remote monitoring using a Victron GX device, for example the Cerbo GX The Lynx Smart BMS is part of the modular Lynx Distribution system.
