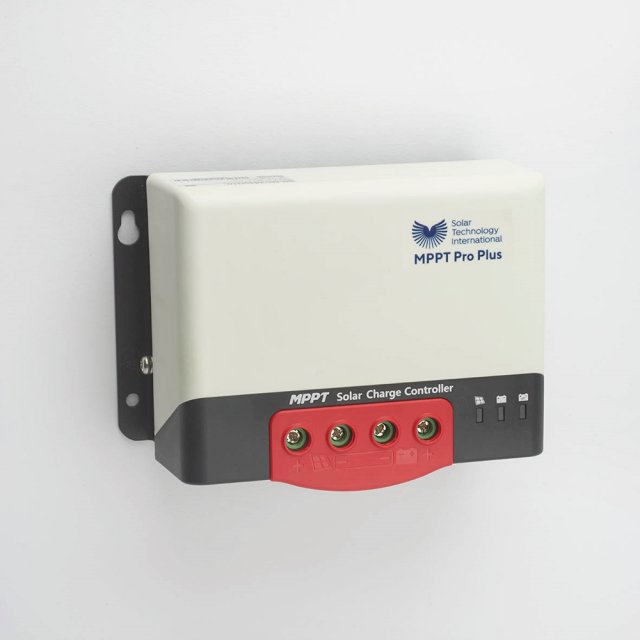

Solar Technology 30A MPPT Pro Plus Bluetooth Charge Controller

Product Description

Nominal System Voltage: 12/24VDC (automatic system voltage recognition) Battery Voltage Range: 9-32V Rated Battery Current: 30A Self-consumption: ?10mA Over Voltage Disconnect Voltage: 16V/32V Charging Limit Voltage: 15.5V/31V Equalize Charging Voltage: 14.6V/29.2V Float Charging Voltage: 13.8/27.6V Operating temperature: -35oC to +45oC Overall dimensions: 150 x 105.6 x 67.5 mm Mounting hole size (in case): 3.8mm Terminal size: 10mm2 Net weight:  830g <a class="pagebuilder-button-primary" href="https://apps.apple.com/gb/app/pvmobilesuite/id1336393857" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fab fa-app-store"></i> <span data-element="link_text" style="font-weight: 600;"> iOS App</span> </a> <a class="pagebuilder-button-primary" href="https://play.google.com/store/apps/details?id=com.limutech.solar" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fab fa-google-play"></i> <span data-element="link_text" style="font-weight: 600;"> Android App</span> </a>MPPT (multi power point tracking) technology increases solar yield by up to 20% over a standard PWM charge controller by artificially modifying the voltage coming from the solar panel by actively matching it to suit what a battery or batteries require, whatever state of discharge they may be in. This advanced algorithm ensures that whatever the weather conditions, a solar panel or panels will deliver the maximum power to a battery/s and with the minimum of electrical losses. To ensure you have complete visibility of how your solar system is performing, a free to download Bluetooth App delivers live and historic data to monitor charge and discharge rates The 30Ah MPPT Pro Plus provides protection for a battery against overcharging for any 12V solar panel or solar array up to 400w (800w for 24v) and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro Plus will more than pay back its cost through the extra power it delivers. Reverse current protection. Efficient MPPT charging, increases battery lifetime and improves solar system performance up to 20% 12/24V automatic recognition. Overload protection Open circuit protection Lightning surge protection Deep discharge protection Charge current protection up to 30A Bluetooth with Apple and Android apps available Contents 1 x 30A MPPT Pro Plus charge controller 1 x instruction sheet Two year warranty
