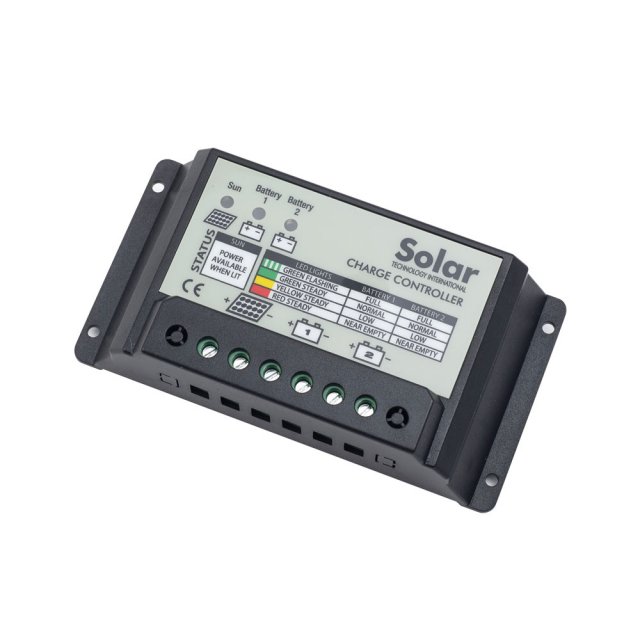

Solar Technology 20A Dual Battery Charge Controller
MPN: STCC20
This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneouslyand can work on both 12v or 24v systems.
login to saveProduct Description
Nominal System Voltage: 12/24VDC (automatic system voltage recognition) Battery Voltage Range: 6-36V Rated Battery Current: 20A Over Voltage Disconnect Voltage: 16V/32V Charging Limit Voltage: 14.6V/29.2V Equalize Charging Voltage: 14.6V/29.2V Float Charging Voltage: 13.8/27.2V Operating temperature: -35oC to +55oC Overall dimensions: 135 x 70 x 35mm Terminal size: 6mm2 Net weight: 165g This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems. The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults. Reverse current protection. Unique dual battery charging function. Efficient Series PWM charging, increases battery lifetime and improves solar system performance. 12/24V automatic recognition. Overload protection Open circuit protection Lightning surge protection Deep discharge protection Charge current protection up to 20A All solar panels (except the 5w &10W) require a voltage regulator to ensure that the battery is not overcharged. We recommend the this controller for panels up to and including 300w. Contents 1 x 20A charge controller 1 x instruction sheet Two year warrantyCollect in Store
This item is available for collection.
