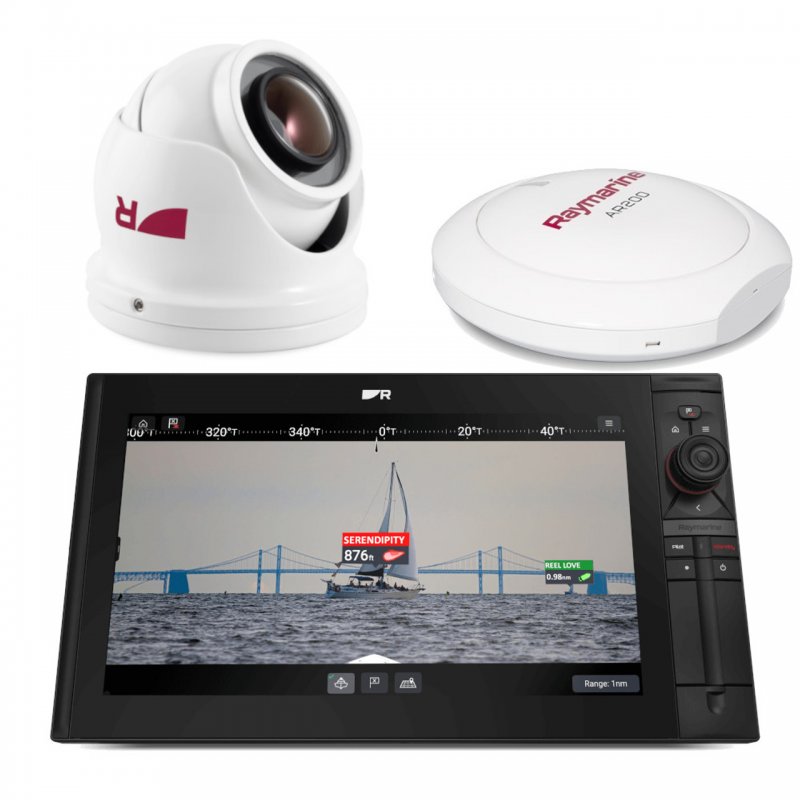

Raymarine CAM300 ClearCruise AR - Augmented Reality Pack T70158

Sale
Raymarine Raymarine CAM300 ClearCruise AR - Augmented Reality Pack T70158

Item: T70581

MPN: T70581

The CAM300 with the Raymarine AR200 sensor makes smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiom video display The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm.

Write the first review

£1,199.99 £1,127.00
RRP £1295.00

updown



You may also need:

Product Description

Features:
• View up to 4 CAM300 video streams simultaneously on single
Axiom display
• 3MP CMOS sensor delivers up to 1080p resolution
• Ultra-compact size blends seamlessly with your vessel
• Built-in infrared emitters for excellent near-field low light
visibility up to 33 ft (10 meters)
• Image flip and invert functions for ball-up/ball-down installation
and reverse video system applications
• Easy to install with either direct 12-volt connection or single
cable Power over Ethernet (POE)
• Rugged IP66 enclosure for below and above deck marine
installations

Specifications:
Dimensions: Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight : 0.420 kg (0.926 lbs)
Relative humidity: Max. 85%
Waterproof rating: IP66
Storage temperature: -30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature: -20 °C to +65 °C (-4 °F to 149 °F)
Power over Ethernet: PoE Class 1 (1.8 W Max) device (IEEE802.3af)
Nominal supply voltage: 12 V dc
Operating voltage range: 10.8 V dc to 15.6 V dc
Power consumption: 1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Current: < 150 mA (Maximum) @ 12 V dc
VIDEO:
Day / Night: True day / night operation with mechanical IR cutout filter
Automatic Gain Control: Supported / Multiple Levels
Scanning system: Progressive scan
Mirroring: Horizontal & Vertical

In The Box

CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector
AR200 IP Camera Stabilisation Module
Mounting screws (3 x)
Documentation
Hex wrench (Allen key)
Waterproof gasket

Product Features

  • Weight: 4200g
