Quick Genius GP2 2000 800w Windlass

Product Description

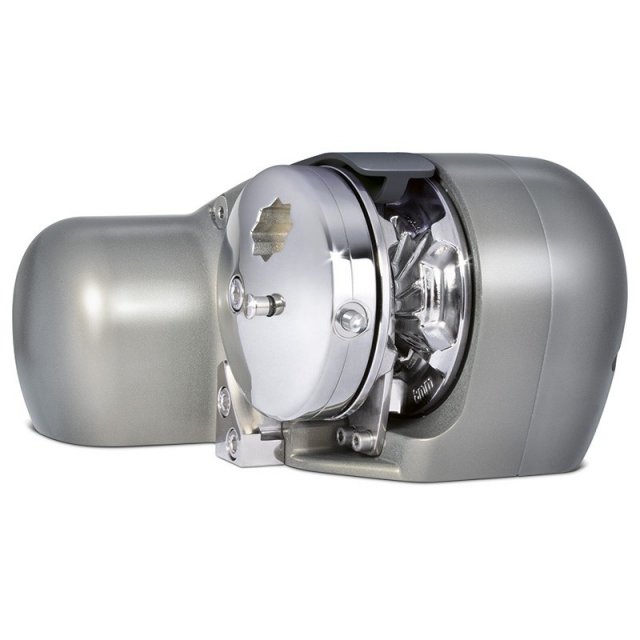

Quick Genius GP2 2000 On-Deck Windlass.

Designed for on deck mounting and manufactured in anodised aluminium with 800w motor, 8mm rope/chain gypsy and integrated sensor and magnet for chain counter.

Specification:

• Suggested boat length for this model is 8mtr - 13mtr (26ft - 43ft)
• 6mm supplied as windlass only c/w contactor
• 8mm supplied as a kit c/w contactor, handle, breaker and switch
• Manual free fall
• IP66 watertight motor
• Motor power: 800w
• Motor supply voltage: 12v
• Maximum pull: 900Kg
• Maximum working load: 350Kg
• Working load: 120Kg
• Current absorbtion @ working load (1): 96A
• Maximum chain speed (2): 19m/min
• Maximum chain speed @ working load (2): 14m/min

(1)After an initial period of use
(2)Measurements taken with a gypsy for a 8mm chain

Optional Accessories:

Circuit Breaker - Up/Down Cabin Control - Foot Switches - Handheld Remote Control - Chain Counter
