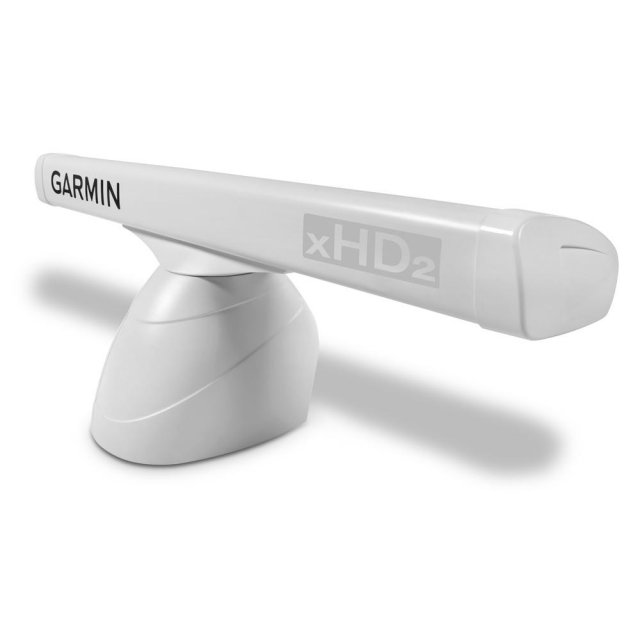

Garmin GMR 1226 xHD2 Open Array Radar

Product Description

• Serious seafarers like you need serious range — up to 72 nautical miles (133 km)
• See targets in incredible detail, even at a distance
• Easily see what’s close and far away with dual-range radar
• Don’t waste time fussing with complex settings. This radar is easy to install
• Say goodbye to noise pollution. This radar rotates quietly

See What’s Coming

High-Powered Radar - This open-array radar delivers 12-kW transmit power and clear echo definition at all ranges. It has rotation speeds of 24 and 48 RPM with a max range scale of 72 nautical miles (133 km).

High-Resolution Radar - The 1.1-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out targets at a distance, while 8-bit true colour imagery enhances target separation.

Intuitive Operation - This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.

See Incredible Detail On The Water

Pulse Expansion - Increase the duration of the transmit pulse, which helps maximise the energy on targets. This provides larger target size on the chartplotter.

Auto Bird Gain - Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

Echo Trails - A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.

Dual Range - Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.

Dual-Radar Support - Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

Dynamic Auto Gain - Gain automatically adjusts levels to optimum settings for harbors, nearshore and offshore in open waters.

Dynamic Sea Filter - Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Radar Overlay - Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

MARPA Target Tracking - Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Guard Zone - Set the safety zone, and receive an alarm when an object enters the zone.

VRM And EBL - Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Dual Range with Overlay - Single radar antenna is capable of providing split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.

In The Box

• GMR 1226 xHD2
• Mounting hardware kit and template
• Power cable (15 meters)
• Network cable (15 meters)
• Cable grommet
• Voltage converter
• Product Documentation
