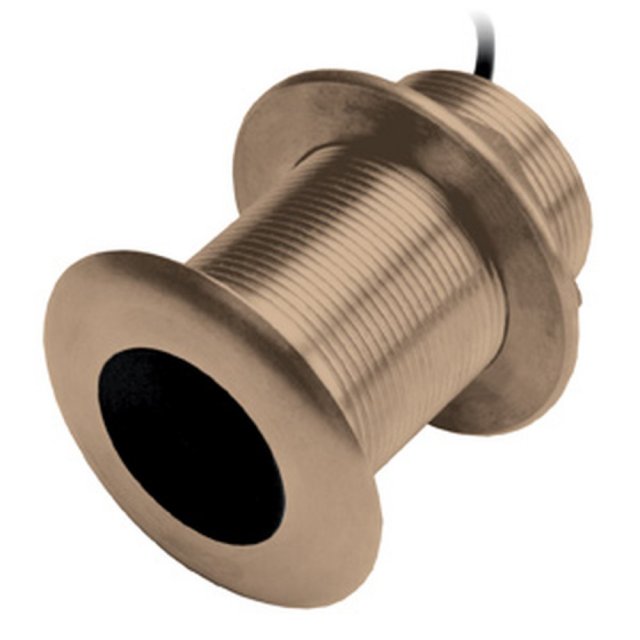

Garmin B175M 20° Tilt 8 Pin Bronze Thru-Hull Transducer
Item: 010-11939-22
MPN: 010-11939-22
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.
login to saveProduct Description
Cable length: 39 ft Power: 1 kW Frequency: CHIRP (85-135 kHz) Maximum depth: 1',500 ft. Number of pins: 8-pin Beamwidth: 11°-16° Depth/speed/temperature: Depth and Temperature Supported deadrise/transom angles: 16°-24° degree deadrise Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies. An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 1,'700 ft; an operating frequency of 85-135 kHz; a beamwidth of 11-16 degrees; and a 16 to 24 degree deadrise. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Collect in Store
