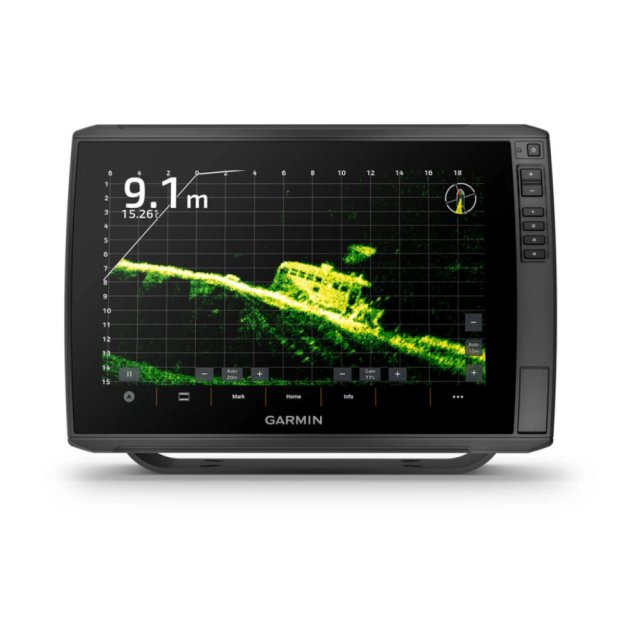

ECHOMAP Ultra2 122sv - Display Only

Product Description

12? Touchscreen Supports LiveScope Sonar and More Supports Garmin Navionics+ and Garmin Navionics Vision+ Mapping Wirelessly share sonar, waypoints and routes Capture screen recordings to share fish catches Multi-band GPS for improved position accuracy

Specification Installation Manual Template

Technical Specifications

GeneralDimensions34.1 x 22.9 x 9.8 cm )Weight2.5KgWater RatingIPX7Touchscreen?Display TypeWXGA IPSDisplay Size26.1 x 16.3 cm, 30.7cm DiagonalDisplay Resolution1280 x 800 pixelsMounting OptionsBail or FlushInputTouchscreen with keyed assist

Maps & MemoryAccepts Data Cards2 microSD CardsWaypoints5,000Track Points50,000tracks50 Saved TracksNavigation Routes100

SensorsGPS?GLONASS?GALILEO?BEIDOU?Built-in Receiver?Receiver10 HzNMEA 2000 Compatible?Supports WAAS?Supports Multi-Band, Multi-Constellation GPS?

Optional Map SupportBlueChart G3?BlueChart G3 Vision?Garmin Navionics+?Garmin Navionics Vision+?TOPO 100k?Standard Mapping?Garmin Quickdraw Contours?

Chartplotter FeaturesAIS?DSC?Fusion-Link?ActiveCaptain App Compatible?Sailing Features?

Electrical FeaturesPower Input9 - 18 VDCTypical Current Draw at 12V2.5AMax Current at 12V5AMax Power Use at 10V36W

Sonar Features & SpecificationsDisplays Sonar?Power Output600 WTraditional SonarBuilt-inClearVuBuilt-in 260/455/800/1000/1200 kHzSideVuBuilt-in 260/455/800/1000/1200 kHzPanoptix Sonar?Livescope?

ConnectionsNMEA 2000 Ports1Garmin Marine Network Ports212 Pin Transducer Ports1 x 12-pin scanning sonarANT+?Garmin Wi-Fi Network?

All the tools needed for successful fishing with big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters provide a world of fishfinding capability They support Garmin Navionics+ and Garmin Navionics Vision+ mapping. What To Love LiveScope Sonar Support - The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products . Built-in UHD Sonar - Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface. Vivid colour palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure. Charts & Maps - Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology and more. Wireless Networking - Connect another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat and wirelessly share information such as sonar, waypoints and routes. Stay Connected Multi-band GPS - Get improved position accuracy with multi-band GPS NMEA 2000 Newtwork Compatibility - Connect to heading sensors, autopilots, Fusion-Link audio systems and more. ActiveCaptain App - Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data and more. Force Trolling Motor - Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more. Take it away - The quick-disconnect bail mount allows quick install and removal from the boat. In The Box ECHOMAP Ultra 122sv Charging/data cable Bail Mount With Quick Release Cradle Protective sun cover Hardware Documentation
