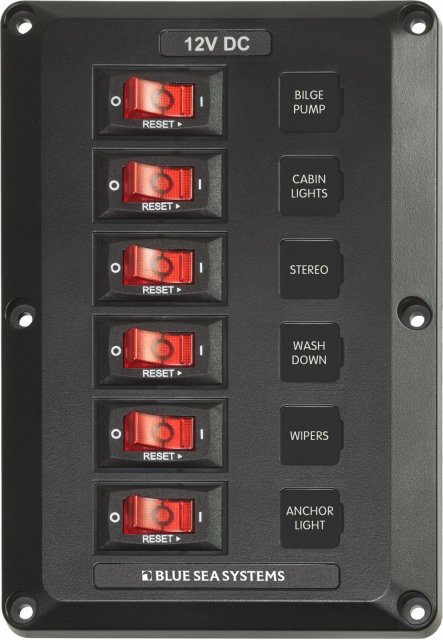

Blue Sea Systems 6 Position, Below Deck Circuit Breaker Panel
login to saveProduct Description
Molded panel frame will stand up to UV and salt air making it perfect for power and sail boat electrical distribution.
EASY
Low profile makes it easy to install in tight spaces
SIMPLE
Fast-on circuit breaker connectors make it quick to wire
CONVENIENT
Red “ON” indicating LEDs for safe operation in low light conditions
- 6 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional labels are available to order
- Stainless steel 6 x 5/8″ mounting screws included
Customer Reviews
By Michael Saxton on 6th March 2018
"Although I've not fitted the units yet there arrived promptly and look good quality well engineered items of equipment."
By Charles Hood on 21st December 2016
"I only had a small space to fit 12 switches so bought two of these and they have done the job - work well and easy to install"
By David Tyler on 9th May 2016
"Well designed and made, a good switchboard option for smaller vessels with only a few electrical items to supply, "
Specification
| Specifications | |
|---|---|
| Positions | 6 |
| Nominal Voltage | 12V DC |
| Maximum Amperage | 45A |
| Terminal Type | 1/4″ Male quick connect |
| Hardware | Stainless Steel #6 x 5/8″ mounting screws |
| Ring Terminal Size | M5 (#10) |
| Height | 6.5in (165.1 mm) |
| Width | 4.5in (114.3 mm) |
| Depth | 1.75in (44.45 mm) |
