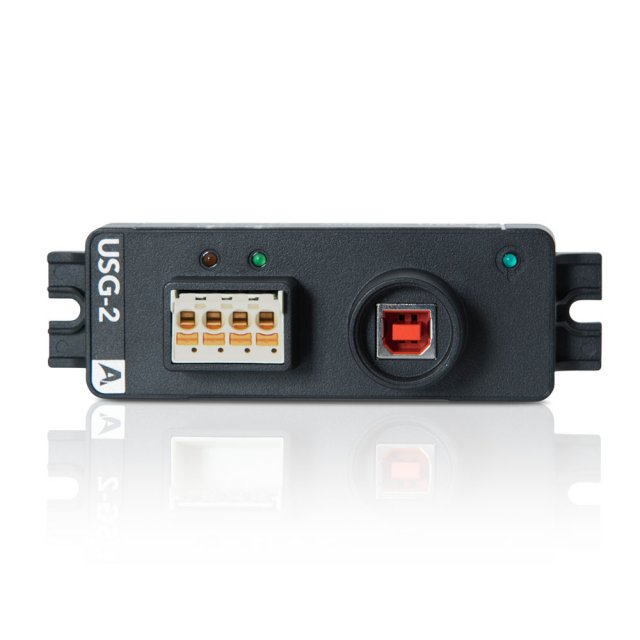

Actisense USG-2 NMEA 0183 to USB Serial Gateway
Item: USG-2
MPN: USG-2
The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network. The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.
login to saveProduct Description
NMEA 0183, RS422 & RS232 compatible ISO-Drive™ technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector The USG-2 provides a far safer connection when compared to standard USB to serial converters. Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops. The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port. The USG-2 is the safest way to connect a boat’s data network to an on-board PC. Note: The USG-2 ships with a USB cable included in the box. However, the USG-2 cable is also available as an accessory in case a replacement is needed. BENEFITS Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loopsCollect in Store
This item is available for collection.
